IWAC220P
IWAC220P has a good physical structure and good physical group delay correction, so that the sound superposition is more ideal with a new generation of high resolution sound quality;
Innovative hanging design. The preset angle of the ground can directly increase the installation speed by four times;
Innovative vertical transport design can stack transportation, greatly improve the efficiency of the protection of transportation;
Special power amplifier module plug in design, allowing in the suspension state independently solve the accident;
Each drive unit has fully independent DSP control and sufficient power drive, which makes the whole system adjust to the ideal advantage of the active system.
Subwoofer options comprise the SUB136TP / SUB136P.
Applications
Specifically designed for mobility commercial performance,compatible with all applications.
IWAC220P/IWAC220IP/IWAC220IPW specifications
Specifications
| Model | IWAC220P | IWAC220IP/IWAC220IPW |
|---|---|---|
| Frequency Range | LF:80~3.2kHz HF:1.5k~18kHz |
LF:80~3.2kHz HF:1.5k~18kHz |
| Frequency Response | 80~18kHz(-10dB) | 80~18kHz(-10dB) |
| Input sensitivity | 32dB | 32dB |
| Short term max SPL | >138dB (Peak level at 1 m under half space) | >138dB (Peak level at 1 m under half space) |
| Horizontal | 120° | 120° |
| Vertical | 10°(1box) | 10°(1box) |
| HF driver | 2×1″Throat 8Ω Neodymium compression drivers | 2×1″Throat 8Ω Neodymium compression drivers |
| Voice coil | 1.73″ | 1.73″ |
| LF driver | 2×10″Neodymium drivers | 2×10″Neodymium drivers |
| Voice coil | 2.5″ | 2.5″ |
| Power(RMS)8Ω | 2x860W + 2x230W | 2x860W + 2x230W |
| Output circuitry | Class D | Class D |
| Electric power | 100~240V/AC 50~60Hz | 100~240V/AC 50~60Hz |
| N.W | 42kg(IWAC220P)/204kg(IWAC220P-4UVTS) | 32.5kg |
| Hanging side frame | Auto-locking Suspension System Laser processing steel plate joining together with black paint Have 4PCS Ø10 stainless steel |
Laser processing steel plate joining together with black paint Equipped with 8x(M6x12)/4x(M10x25) screws |
| Application | Minimum 1,maximum 12 units line array | Minimum 1,maximum 12 units line array |
| Product Dimensions(mm) | W742xH287xD513 | W730xH287xD514 |
| Package Dimensions(mm) | W810xH1370xD660 | W840xH625xD390 |
| Processor | 24 Bit DSP;DSP Max Delay:5ms(1.7m);10 bands PEQ;Q:0.2-25 adjustable;Bes/BW 6~24dB/oct & L-R 12~24dB/oct Optional;Bell/Notch/Hi-shelf/Lo-shelf/All Pass Optional | |
| Connector | 2xNEUTRIK® PowerCon®;2xNEUTRIK® XLR;USB-B(DSP control) | |
| Cabinet | CNC made 15mm birch wood sandy wear-resisting;environmental polyurea spray paint | |

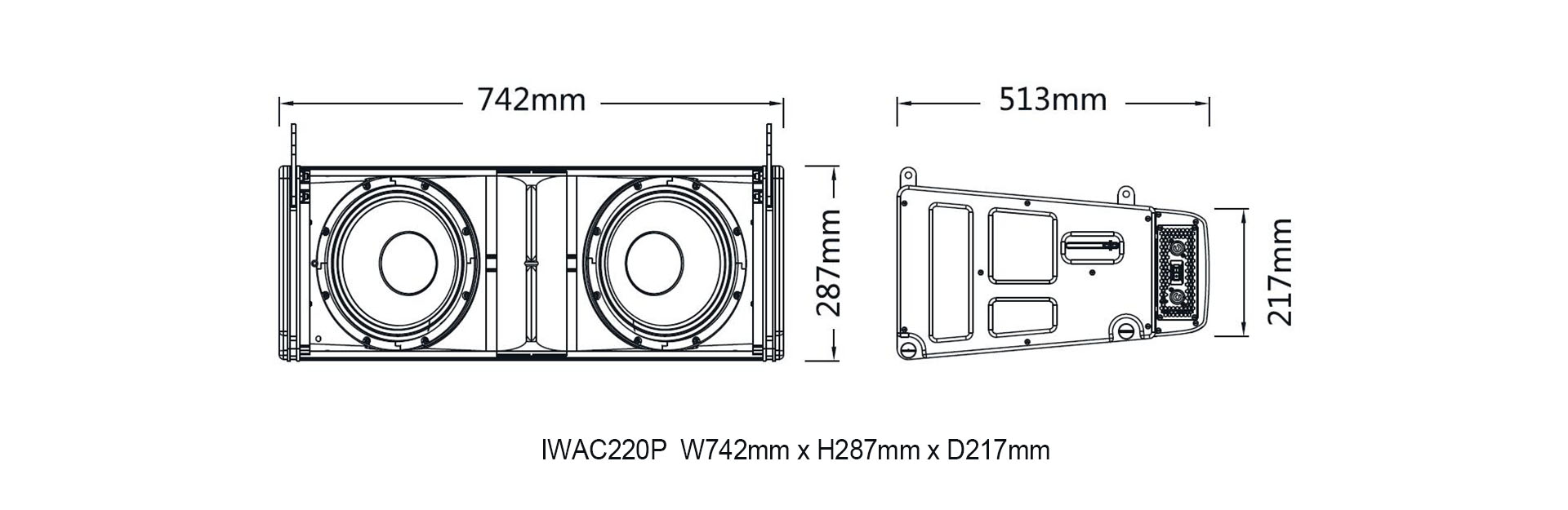

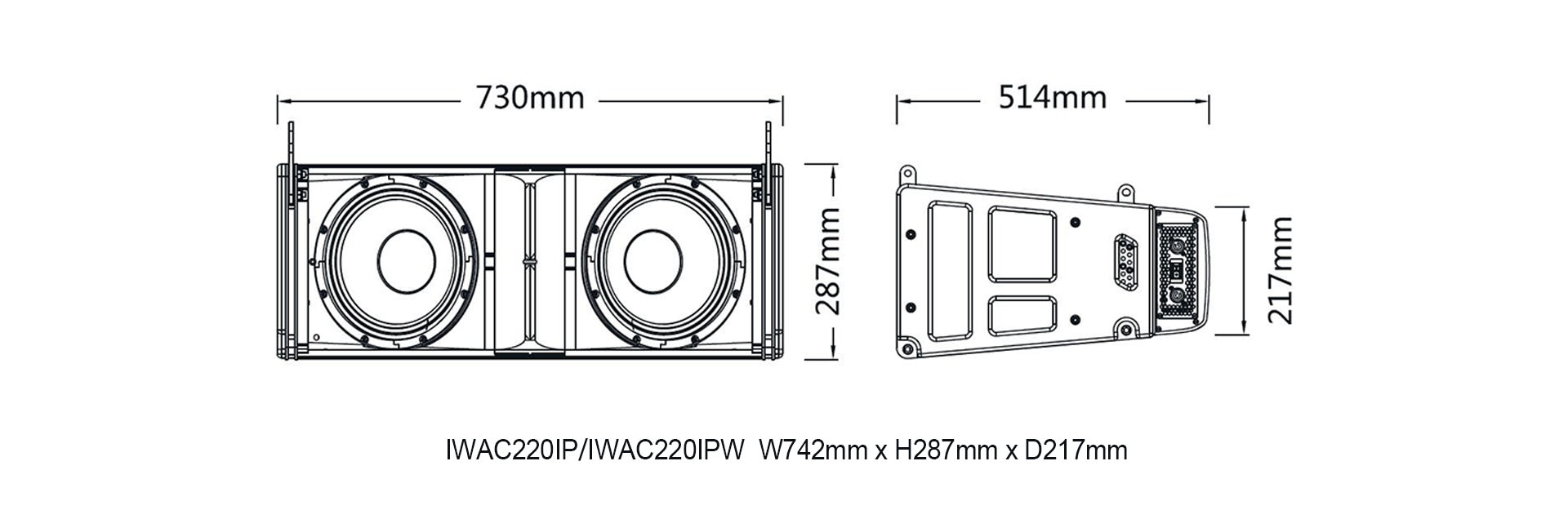

Dimensions
 |
 |
