IWAC 220
The IWAC 220 is a full-range, passive Dual 10”vertical line array cabinet. Careful cabinet design and driver placement have resulted in reduced mechanical driver offset and group delay minimizing the need for time and phase correction, producing a balanced full-range, hi-fidelity listening experience even in the far field.
Subwoofer options comprise the SUB118TL, SUB136 / SUB136T.

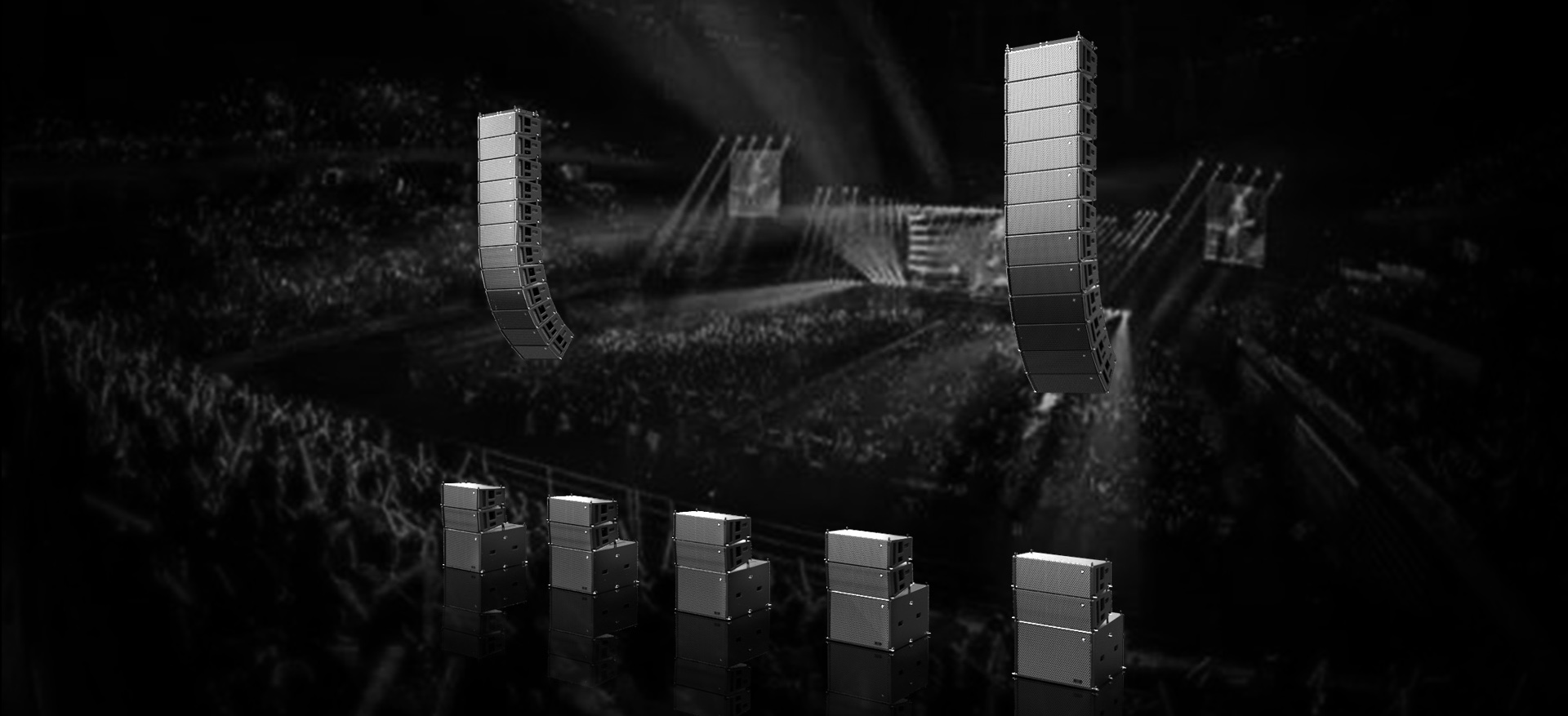

Application
Driver complement is (2) 10”Neodymium drivers rated @ 500W AES and (2) 1.73”Compression Neodymium drivers rated at 110W AES. Peak output is >136dB @ 1m (half space). The CNC routed tongue and groove cabinet construction using 15mm birch plywood is finished in a highly durable textured finish. Integral (patented) rigging points facilitate easy and safe setup. IWAC 220 is ideally matched with SUB118TL or SUB136T Subwoofers and Verity V Series Amplifiers.

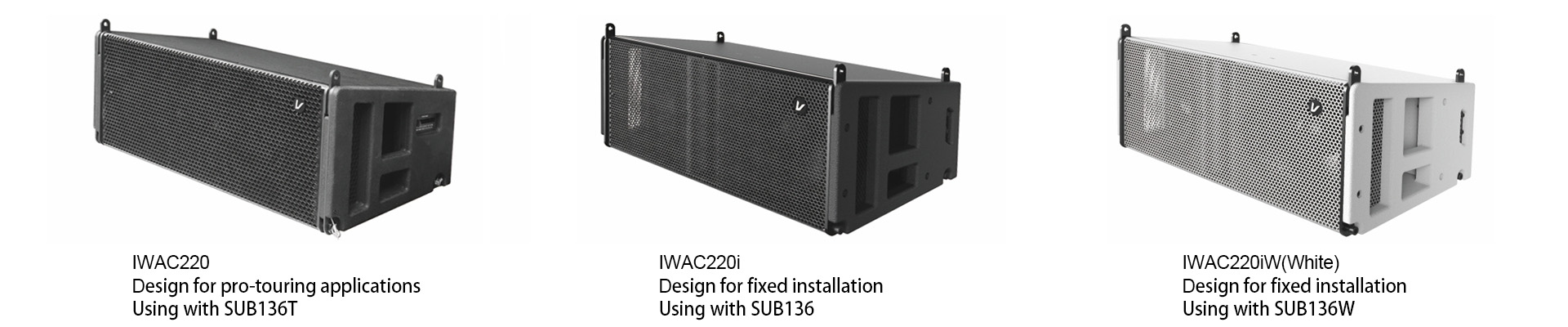

Specifications
| Model | IWAC220 | IWAC220i/IWAC220iW | |
|---|---|---|---|
| Power Handling | LF:500W/HF:110W (AES) | LF:500W/HF:110W (AES) | |
| Program Power | LF:1000W/HF:220W | LF:1000W/HF:220W | |
| Nominal impedance: | LF:16Ω/HF:16Ω | LF:16Ω/HF:16Ω | |
| Frequency Range | LF:80~3.2kHz HF:1.5k~18kHz |
LF:80~3.2kHz HF:1.5k~18kHz |
|
| Frequency Response | 80~18kHz(-10dB) | 80~18kHz(-10dB) | |
| Sensitivity | LF-100dB;HF-113dB | LF-100dB;HF-113dB | |
| Maximum SPL | >136dB(Peak level at 1 m under half space) | >136dB(Peak level at 1 m under half space) | |
| Horizon | 120° | 120° | |
| Vertical | 10° (1box) | 10° (1box) | |
| LF driver | 2x 10″Neodymium driver | 2x 10″Neodymium driver | |
| Voice coil | 2.5″(65mm) | 2.5″(65mm) | |
| HF driver | 2×1.73″ driver | 2×1.73″ driver | |
| Voice coil | 1.73″(44mm) | 1.73″(44mm) | |
| Exit | 1″(25.5mm) | 1″(25.5mm) | |
| Connector | 2xNEUTRIK® NL4 SPEAKON® parallel LF:±1 Hf:±2 | ||
| Cabinet | CNC made 15mm birch wood sandy wear-resisting environmental polyurea spray paint | ||
| Hanging side frame | Laser processing steel plate joining together with black paint Have 4PCS Ø10 stainless steel | Laser processing steel plate joining together with black paint Equipped with 8x(M6x12)/4x(M10x25)screws | |
| Application | Minimum 4,maximum 16 units line array | Minimum 1,maximum 12 units line array | |
| Product Dimensions(mm) | IWAC220:W742xH287xD425 / IWAC220-4UVTS:W810xH1370xD660 | IWAC220:W730xH287xD421 / IWAC220-4UVTS:W840xH625xD390 | |
| N.W | IWAC220:34.5kg / IWAC220-4UVTS:175kg | IWAC220i:25.3kg / IWAC220iW:33.5kg | |
Remark:
Verity Audio reserves the right to interpret the above parameters. The parameters are subject to change without prior notice. The most specific parameters are subject to the product manual.
Dimensions
 |
 |
